What is unique about our sensor?

  • Means high sensitivity.

  • Means incredible Robustness.

  • Means economy on scale.

  • Non generic design, the sensor can be designed fully compatible with the geometry required by the client.

Performance specification

  • -25 ºC / 200 ºC

  • 0 V (passive)

  • 20 mV/m/s^2

  • 10 - 20’000 Hz

Packaging specification

  • Metal

  • Fully customizable

  • Fully customizable

Electrical properties

  • ~ 15 - 20

  • < 0.1 %

  • in MΩ range

Signal strength (3.5 mm x 3.5 mm active area)

  • Current: 1.02 E-6 A

    Charge: 1.02 E-10 C

  • Current: 1.02 E-6 A

    Charge: 1.02 E-10 C

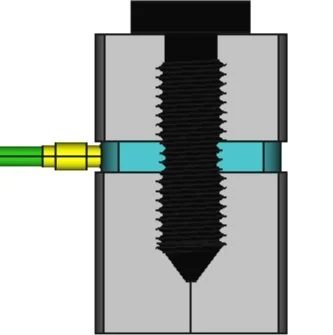

Typical placement of the sensor between two machine part

Watch our MEMS sensor in action, without housing and basic amplifier.

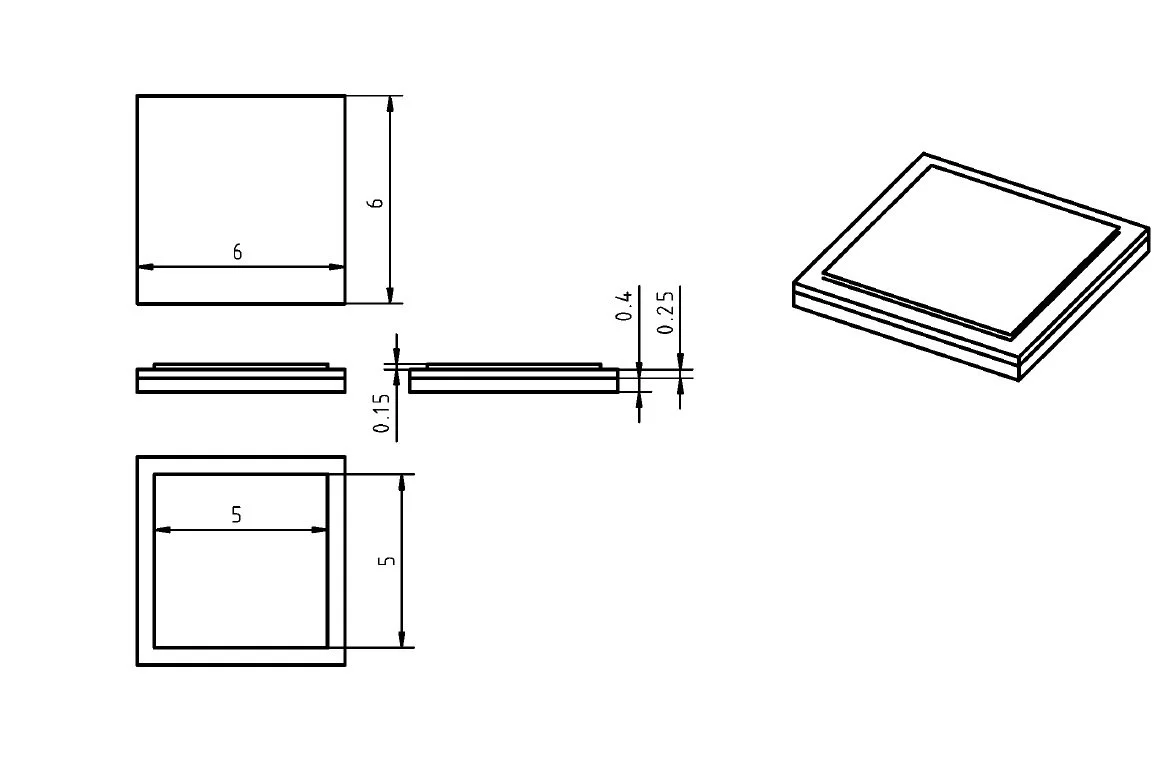

Typical dimension of the MEMS part without housing and electronics in mm
